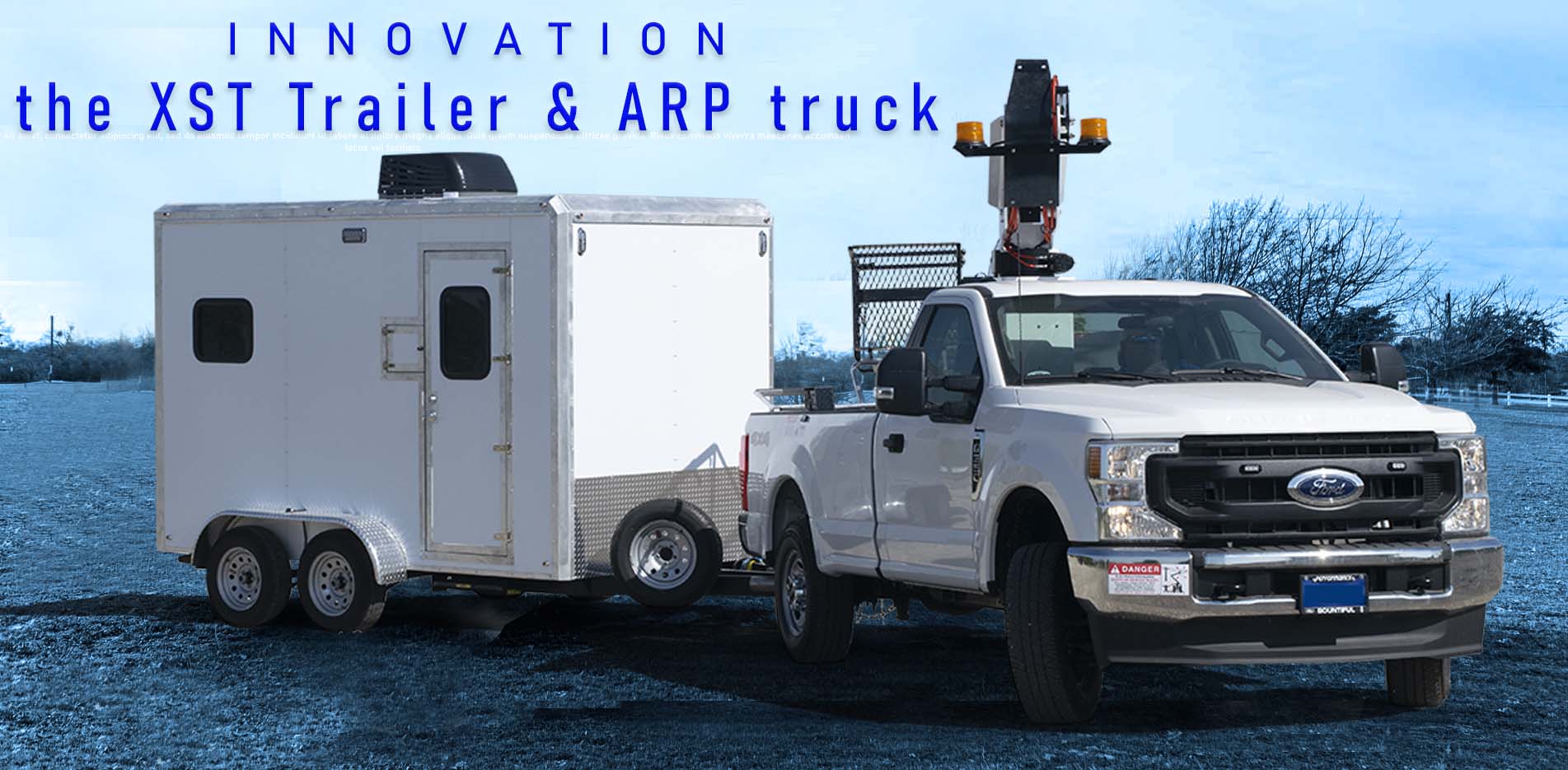

Modular Solution

Enjoy a discount when purchasing it as a package.

(Also sold separatley).

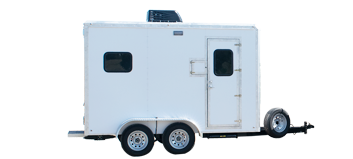

Fiber Optic Splicing Trailer

12 ft Splicing Lab
Welded Steel Sub-frame
5in C-Channel Tongue
4in C-Channel Cross Members
Sin C-Channel & 3in x 2in Tube Welded Sub-frame
2in x 2in Welded Aluminum Walls
Fully Insulated
Extruded Top Rails and Corners
No Leak Aluminum Roof

Qty 2 - Aluminum Welded Break In Proof Entry Doors
Located at the Rear and Curbside Front

Qty 4 - Windows
Emergency Egress Window on Streetside
One Window in Each Door
Counter tops
Full Length Countertop on Streetside
Partial Length Countertop Curbside
Aluminum Cabinetry Under Countertop

Qty 2 - Fiber Splicing Door - Aluminum Welded and Lockable
Lighting
LED Recessed Interior AC Lighting w/ Qty 2 DC Strip Lights
DOT Compliant Stop/Tail/Turn and Marker Lighting
Roof Mounted AC
15,000 BTU, w/ Heat Strip

Qty 2 - 3500lb Torsion Axles w/ Breaks

Trailer Jacks Rear Only for Leveling on Uneven Ground
15,000 Ibs Bull Dog Hitch

Onan P4500i Generator (mounted on tongue)

Diamond Plate Rock Guard on Front of Trailer
Diamond Plate Custom Generator Cover

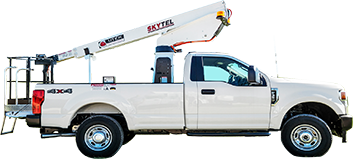

ARP Truck

Aerial Specifications

Horizontal Side Reach 19 ft 9 in
Height Bottom Basket 28 ft 1 in
Working Height 33 ft 1 in
Stowed Height 10 ft 3 in
Standard Basket Capacity 350 lbs
540 Deg 540 Degree Rotation
Engine Driven Hydraulic Pump
Emergency Lowering 12 VDC
Proportional Upper Controls
 w/ Single Handle Actuator
Side Mounted Walk-Thru Basket
 w/ Door
Light Weight Aluminum Inner Boom
Hydraulic Leveling Basket
Pedestal Houses Hydraulic
 Reservoir and 12 VDC Motor
UTLN35A meets and exceed ANSI A92.2-2015 and OSHA Requirements
*Based on a 35 in pickup bed height

Pickup Requirements

Pickup GVWR* 10,000 lbs
Front Axle GAWR* 3,950 lbs
Rear Axle GAWR* 6,340 lbs
Approx Weight for Stability 7,800 lbs
Bed Length 8 ft
Single Rear Wheels
*Based on minimum specifications
